Highly Chemically Stable Basalt Fiber Sleeves And Tapes

Braided Basalt Fiber Sleeving is made of high quality braided basalt yarns with excellent electrical insulation, high temperature resistance, chemical resistance, and toughness, making it an optimal insulation and protection solution for extreme working environments. Basalt fibers are similar to carbon and glass fibers, but basalt has better mechanical properties than glass fibers and costs less than carbon fibers. Textured basalt braided sleeving is easy to install and provides years of protection and beauty.This sleeving is resistant to most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and compliant.

Basalt Fiber Sleeving is a highly conformable sleeving that provides excellent thermal protection for engine and generator exhaust pipes in automobiles, marine engines and generators, buses, construction and mining equipment. It is also widely used in metallurgical, chemical, automotive, marine and aerospace applications to protect hoses (hydraulic), oil pipes, fluid transfer pipes, exhaust pipes and cables from heat and fire accidents.

  • Processing Service Bending, Decoiling, Moulding, Welding, Punching, Cutting
  • Raw material Basalt fibers
  • Colors Titanium color
  • Inner diameter 10mm-120mm
  • Length 1m or customized
  • Temperature resistance 700℃
  • Structure Braided
  • Type thermal protection


Product Feature:

1. Heat resistance: Basalt Fiber sleeves and tapes have excellent heat resistance and are able to withstand stress and heat radiation in high temperature environments.

2. Corrosion resistance: Due to its basalt fiber composition, Basalt Fiber sleeves and tapes have excellent resistance to chemical corrosion and corrosive media.

3. Abrasion resistance: Basalt Fiber sleeves and tapes have excellent abrasion resistance against mechanical friction and wear.

4. Lightweight: Basalt Fiber sleeves and tapes are lightweight compared to conventional protective materials and do not add extra loads to equipment and structures.

5. Flexibility: Basalt Fiber sleeves and tapes are flexible and malleable, adapting to surfaces of all shapes and sizes.

6. Environmentally friendly: Basalt Fiber sleeves and tape are made from natural basalt fibers that are recyclable and have a low environmental impact.

Product Features.jpg

Product Specification:

Technical Datasheet

Material

Basalt

Working temperature

-40℃ - +648℃

Flammability

VW-1

Melting point

+982℃

Standard Color

Nature

Standard thickness

1.5 mm

MOQ

300 meter each size

Cutting tool

Scissors

Sleeves

Code

Diameter(mm)

Weight(g/m)

Roll Length(m)

BHS-40

40

70

40

BHS-60

60

145

40

BHS-70

70

160

30

BHS-100

100

225

30

BHS-120

120

245

30

BHS-150

150

300

25

BHS-200

200

390

25

Tapes

Code

Diameter(mm)

Weight(g/m)

Roll Length(m)

BHT-25

25

400-430

100-300

BHT-50

50

BHT-75

75

BHT-100

100

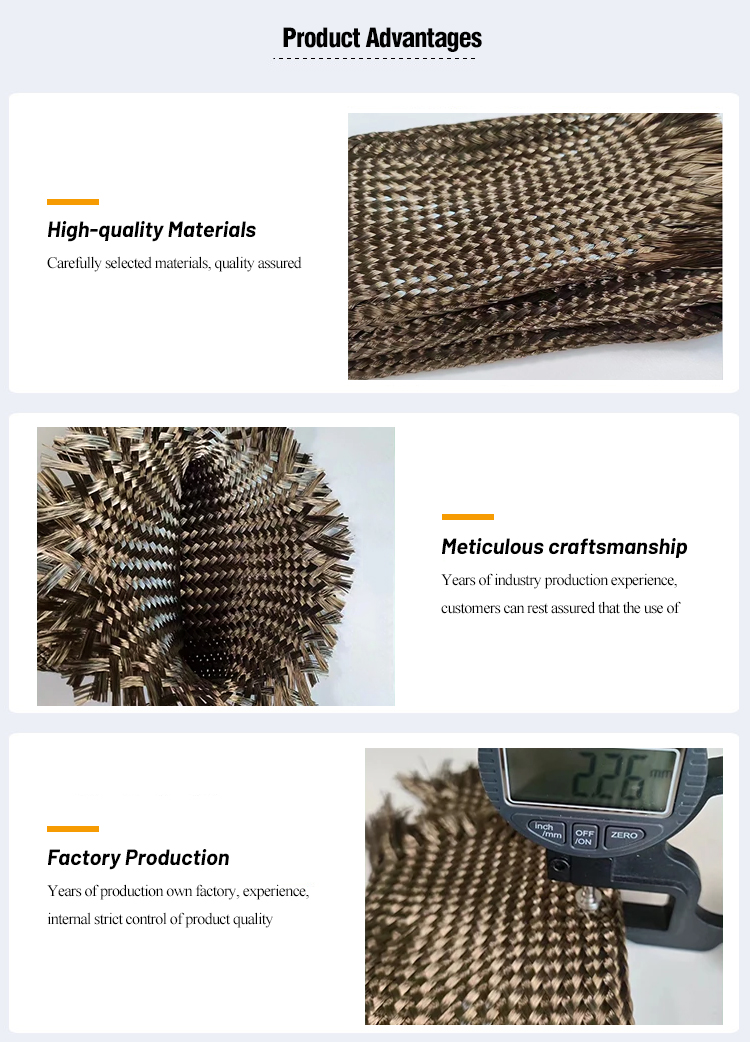

Product Advantages.jpg

Product Applications:

  • Construction: used for structural reinforcement, especially in bridges, tunnels and high-rise buildings.
  • Oil and gas industry: used in pipelines and storage tanks to prevent corrosion and improve structural strength.
  • Power industry: used in cable protection to ensure the safe and stable operation of power facilities.
  • Transportation: In vehicles and ships, used to enhance the durability of structures.

Product Applications.jpg
