High Tensile Strength Basalt Fiber Chopped Strand Mat for Rapid Composite Thickness Build and Corrosion Resistant Hand Lay Up

Engineered for rapid laminate build up and superior mechanical reinforcement our Basalt Fiber Chopped Strand Mat features randomly oriented volcanic basalt strands bonded together for uniform multi directional strength. This premium non woven mat wets out rapidly with unsaturated polyester vinyl ester and epoxy resin systems ensuring efficient air release and excellent mold adaptability. Inherently resistant to chemical corrosion extreme temperatures ultraviolet radiation and moisture absorption it prevents pattern print through while vastly improving interlayer bonding. Ideal for manufacturing heavy duty chemical storage tanks marine hulls automotive body panels and structural composite laminates.

Feature Fire Resistance
Length 3mm to 90mm
Diameter 13-20um

Product Detail

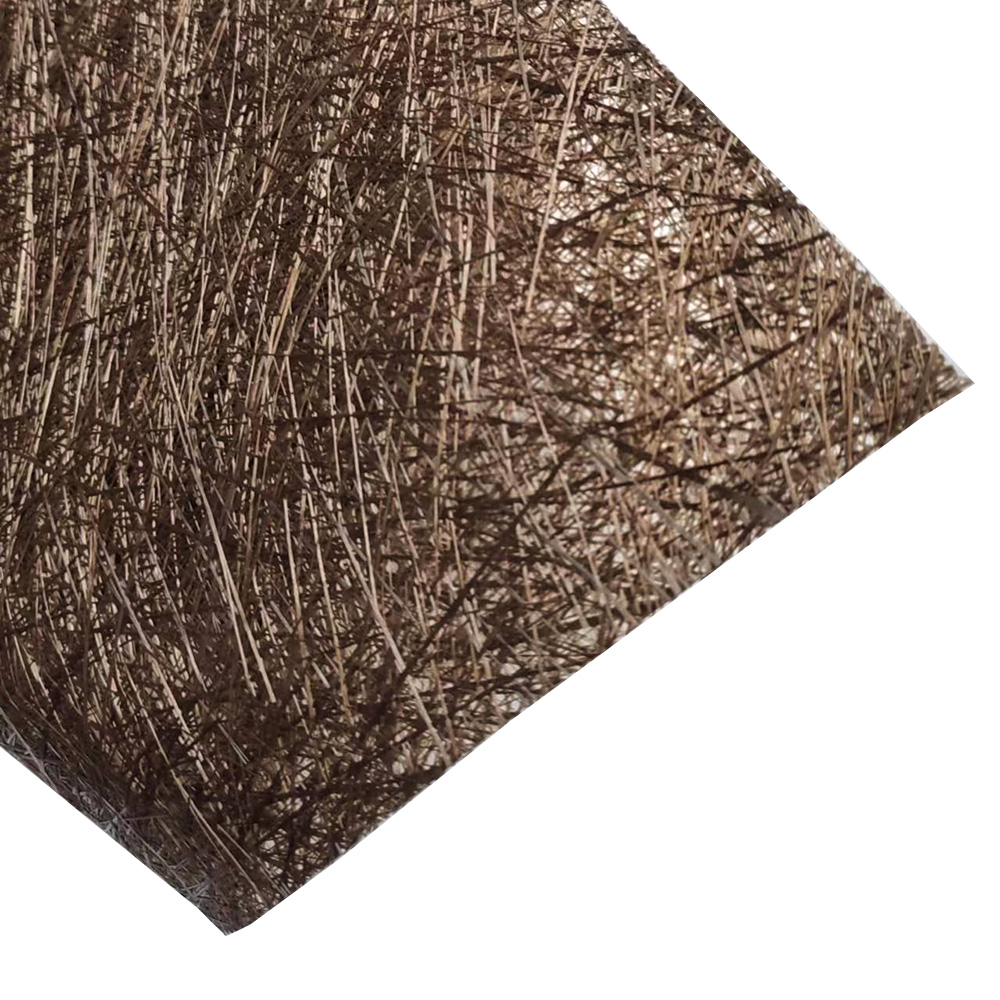

Basalt Fiber Chopped Strands for Reinforcement.jpg

Product Features

1. Excellent high temperature resistance
Wide range of temperature resistance: long-term resistance from -260°C to 800°C, short-term resistance is even higher (melting point 1450°C), far more than ordinary glass fiber (E-glass).

Fireproof and heat insulation: no harmful gases are released under high temperature, suitable for fireproof boards, heat insulation layer of high temperature pipelines, etc.

2. Strong corrosion resistance
Excellent acid and alkali resistance: stable performance in acidic, humid or salt spray environments, with a longer life than glass fiber (e.g. chemical storage tanks, marine facilities).

Anti-aging: UV resistance, good weather resistance, suitable for long-term outdoor use (e.g. wind turbine blades, building facades).

3. High strength and light weight with good reinforcing effect
Strength close to S-glass fiber: tensile strength 3000-4800 MPa, improving the impact resistance of composite materials.

Lightweight: density is only 2.6-2.8 g/cm³, lighter than metal, helping automobile and aviation parts to reduce weight.

Uniform reinforcement: short-cut fibers are randomly distributed, reducing material anisotropy and adapting to complex structures.

4. Both environmental protection and economy
Green material: the raw material is natural basalt, no boron and other harmful substances, low production energy consumption, recyclable.

Cost-effective: better performance than glass fiber, lower cost than carbon fiber, low comprehensive maintenance costs.

5. Wide process adaptability
Easy processing: good wettability with epoxy, polyester and other resins, support for hand lay-up, spraying, molding and other molding processes.

Fast layup: short-cut mat structure simplifies operation and improves production efficiency (e.g. ship and automobile parts manufacturing).


Product Specification

Series of products	Sizing of agent	Areal Weight(g/m2)	Width(mm)	Combustible content(%)	Moisture content(%)
Series of products	Sizing of agent	GB/T 9914.3	-	GB/T 9914.2	GB/T 9914.1
BH-B300-1040	Silane-plastic size	300±30	1040±20	1.0-5.0	0.3
BH-B450-1040		450±45	1040±20
BH-B600-1040		600±40	1040±20

Applications

Thermal Insulation: Basalt fiber chopped strand mat is employed for thermal insulation in high-temperature equipment and pipelines, such as furnaces, kilns, heat treatment equipment, and piping systems. It effectively reduces energy losses and enhances energy efficiency.

Sound Absorption and Noise Reduction: Basalt fiber chopped strand mat serves as an acoustic material to dampen noise and vibration, commonly used in automotive, marine, aerospace, and other industries.

Building Materials: Basalt fiber chopped strand mat is used in building materials for thermal insulation, roof insulation, soundproofing, and other purposes, improving the energy efficiency of buildings.

Composite Materials: Basalt fiber chopped strand mat is commonly used as a reinforcement material in composite manufacturing. When combined with resins or other matrix materials, it produces high-performance composite materials used in aerospace, automotive, marine, and other industries.
