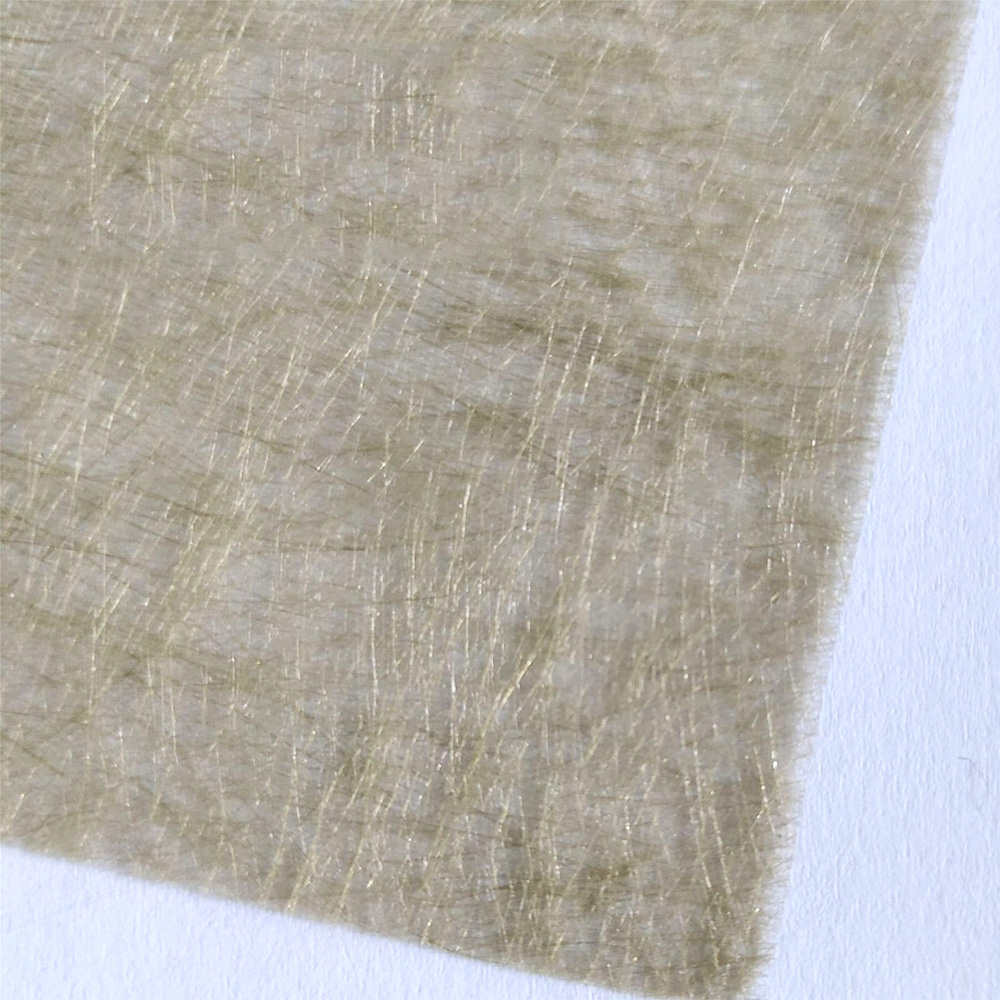

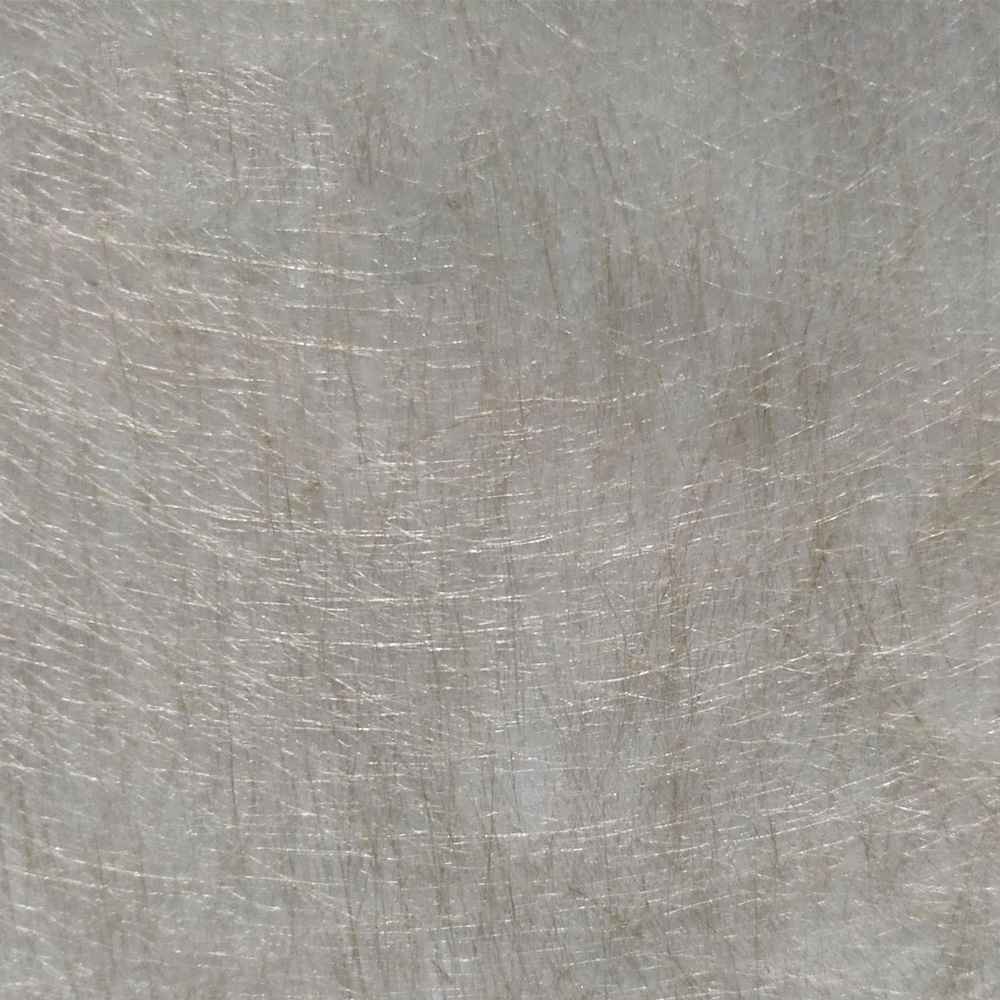

Basalt Fiber Tissue Mat for Corrosion Protection and Composite Enhancement
Product Feature
1. Smooth Surface: Basalt fiber surfacing tissue mat creates a smooth and even surface finish, enhancing the aesthetics and appearance of composite products.
2. Protection: The surfacing tissue mat acts as a protective layer, providing resistance against abrasion, impact, and environmental factors, thereby extending the lifespan of the composite structure.
3. Compatibility: Basalt fiber surfacing tissue mat is compatible with various resin systems, including polyester, epoxy, andvinyl ester, allowing for versatility in composite manufacturing processes.
4. Chemical Resistance: Basalt fibers exhibit good chemical resistance, providing added protection against corrosive substances and chemical exposure.
5. Heat Resistance: Basalt fibers offer excellent heat resistance, ensuring that the surfacing tissue mat remains stable and intact even under high-temperature conditions.
Product Parameters
|
Filament Diameter (μm) |
Areal Weight (g/m2) |
Width (mm) |
Organic Matter Content (%) |
Moisture Content (%) |
Resin Compatibility |
|
11 |
30 |
1000 |
6-13 |
≦0.1 |
Epoxy, Polyester |
|
11 |
40 |
1000 |
6-26 |
≦0.1 |
Epoxy, Polyester |
|
11 |
50 |
1000 |
6-26 |
≦0.1 |
Epoxy, Polyester |
|
11 |
100 |
1000 |
6-26 |
≦0.1 |
Epoxy, Polyester |
Application
- High temperature sealing gaskets:
Internal combustion engine exhaust pipe, turbocharger sealing.
High temperature sealing of industrial pipe flanges (instead of asbestos gaskets).
- Thermal barrier:
Battery pack thermal management (blocking heat transfer between cells).
Aerospace equipment fire protection insulation.
Sound absorbing and noise reducing materials:
Automotive engine compartment, industrial equipment acoustic mats.
- Reinforced composite top layer:
Used as a surface layer for composite panels to enhance impact and abrasion resistance.
