High Temperature Heat Resistant Fireproof Basalt Fiber Braided Sleeve
Product Description
Basalt Fiber Sleeving is a highly conformable sleeving that provides excellent thermal protection for engine and generator exhaust pipes in automobiles, marine engines and generators, buses, construction and mining equipment. It is also widely used in metallurgical, chemical, automotive, marine and aerospace applications to protect hoses (hydraulic), oil pipes, fluid transfer pipes, exhaust pipes and cables from heat and fire accidents.
Products Features
- High Temperature Resistance Heat Resistance High Insulation.
- Excellent electrical insulation Chemical resistance
- High chemical stability Sound insulation
Product Specification
|
Technical Datasheet |
|
|
Material |
Basalt |
|
Working temperature |
-40℃ - +648℃ |
|
Flammability |
VW-1 |
|
Melting point |
+982℃ |
|
Standard Color |
Nature |
|
Standard thickness |
1.5 mm |
|
MOQ |
300 meter each size |
|
Cutting tool |
Scissors |
|
Sleeves |
|||
|
Code |
Diameter(mm) |
Weight(g/m) |
Roll Length(m） |
|
BHS-40 |
40 |
70 |
40 |
|
BHS-60 |
60 |
145 |
40 |
|
BHS-70 |
70 |
160 |
30 |
|
BHS-100 |
100 |
225 |
30 |
|
BHS-120 |
120 |
245 |
30 |
|
BHS-150 |
150 |
300 |
25 |
|
BHS-200 |
200 |
390 |
25 |
|
Tapes |
|||
|
Code |
Diameter(mm) |
Weight(g/m) |
Roll Length(m） |
|
BHT-25 |
25 |
400-430 |
100-300 |
|
BHT-50 |
50 |
||
|
BHT-75 |
75 |
||
|
BHT-100 |
100 |
||

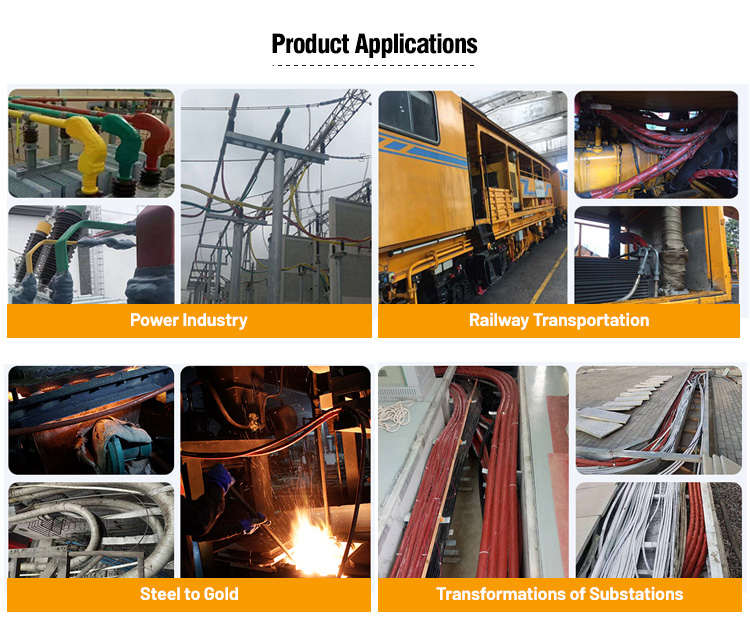

Fields of application
- Industrial protection:
High temperature piping, cable jacketing (e.g. automotive exhaust lines, steel mill equipment), hydraulic hose reinforcement. - Aerospace:
Engine wiring harness protection, insulating sleeves to reduce weight and increase temperature resistance. - Fire & Safety:
Fire suits, escape rope reinforcements, flame retardant and high temperature resistant. - Construction:
Concrete structure reinforcement, earthquake resistant materials, replacing part of the carbon fiber to reduce costs. - New Energy:
Lithium battery pack insulation sleeve, solar energy equipment cable protection.
