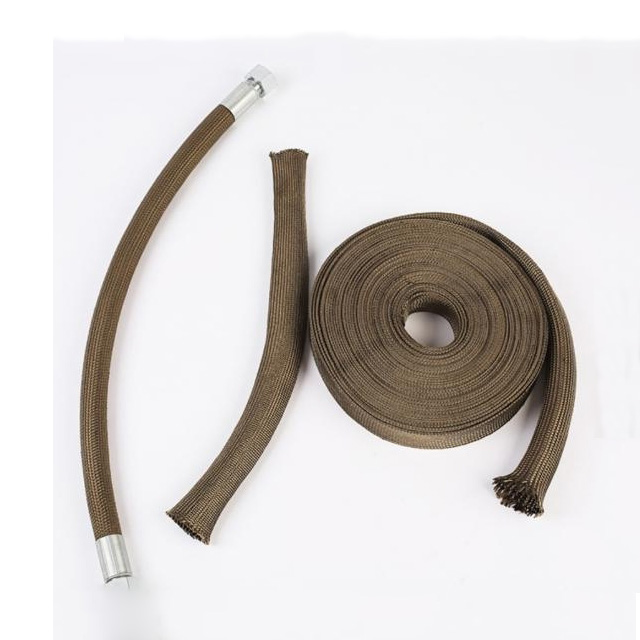

Insulation Basalt Fiber Wrapping Tape and Sleeving
Product Feature:
- High temperature resistance:
Wide working temperature range (-260℃ to +800℃), instantaneous temperature resistance up to 1000℃ or more, suitable for extreme high temperature environment. - Chemical Stability:
Acid and alkali corrosion resistance, UV aging resistance, suitable for chemical, marine and other harsh environments. - Mechanical properties:
High tensile strength (better than steel and E-glass fiber), good abrasion resistance, strong impact resistance. - Insulation:
Excellent electrical insulation performance, can be used for electrical equipment protection. - Environmental friendliness:
Raw material is natural basalt, production without harmful substances, recyclable, in line with the trend of green materials.
Product Specification：
|
Technical Datasheet |
|
|
Material |
Basalt |
|
Working temperature |
-40℃ - +648℃ |
|
Flammability |
VW-1 |
|
Melting point |
+982℃ |
|
Standard Color |
Nature |
|
Standard thickness |
1.5 mm |
|
MOQ |
300 meter each size |
|
Cutting tool |
Scissors |
|
Sleeves |
|||
|
Code |
Diameter(mm) |
Weight(g/m) |
Roll Length(m） |
|
BHS-40 |
40 |
70 |
40 |
|
BHS-60 |
60 |
145 |
40 |
|
BHS-70 |
70 |
160 |
30 |
|
BHS-100 |
100 |
225 |
30 |
|
BHS-120 |
120 |
245 |
30 |
|
BHS-150 |
150 |
300 |
25 |
|
BHS-200 |
200 |
390 |
25 |
|
Tapes |
|||
|
Code |
Diameter(mm) |
Weight(g/m) |
Roll Length(m） |
|
BHT-25 |
25 |
400-430 |
100-300 |
|
BHT-50 |
50 |
||
|
BHT-75 |
75 |
||
|
BHT-100 |
100 |
||
Fields of application:
- Industrial protection:
High temperature piping, cable jacketing (e.g. automotive exhaust lines, steel mill equipment), hydraulic hose reinforcement. - Aerospace:
Engine wiring harness protection, insulating sleeves to reduce weight and increase temperature resistance. - Fire & Safety:
Fire suits, escape rope reinforcements, flame retardant and high temperature resistant. - Construction:
Concrete structure reinforcement, earthquake resistant materials, replacing part of the carbon fiber to reduce costs. - New Energy:
Lithium battery pack insulation sleeve, solar energy equipment cable protection.
