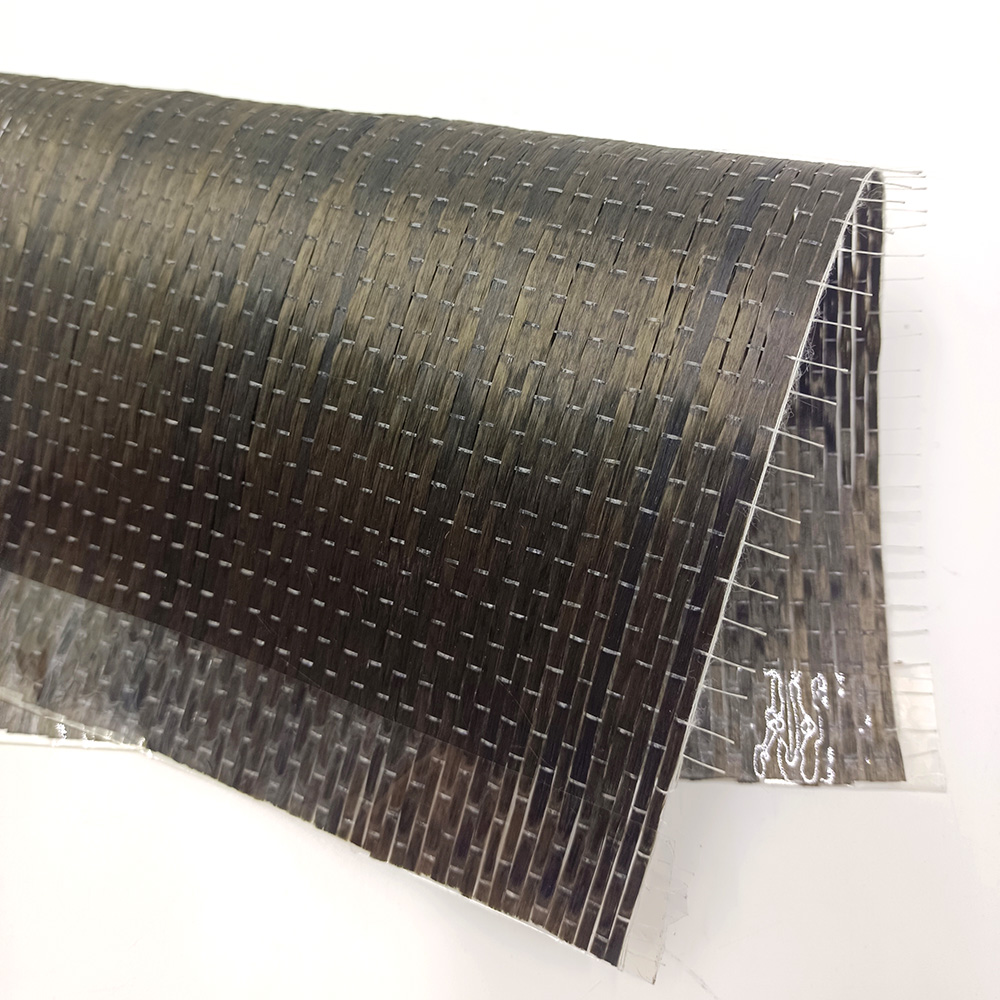

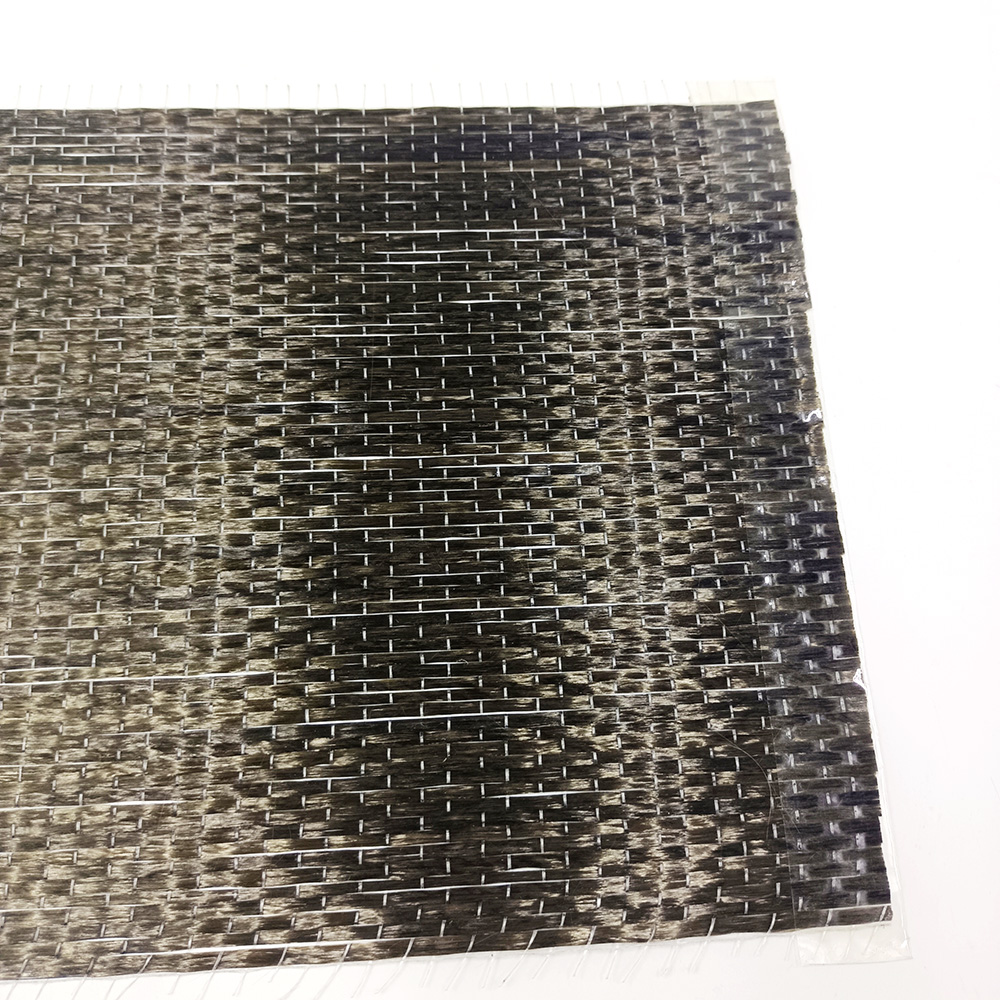

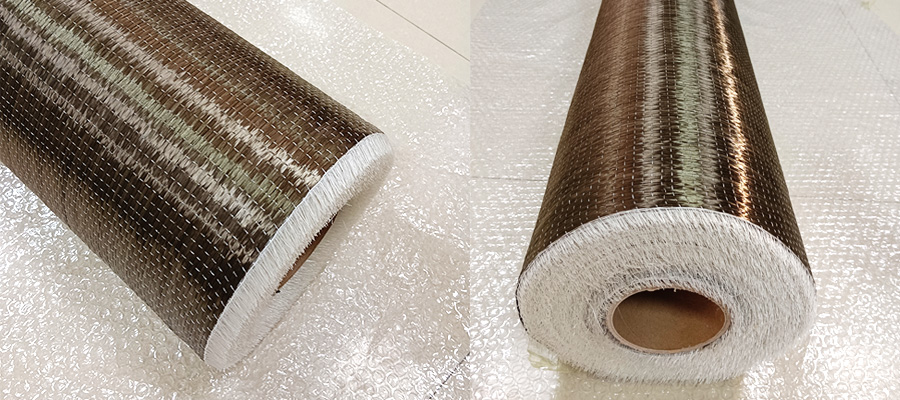

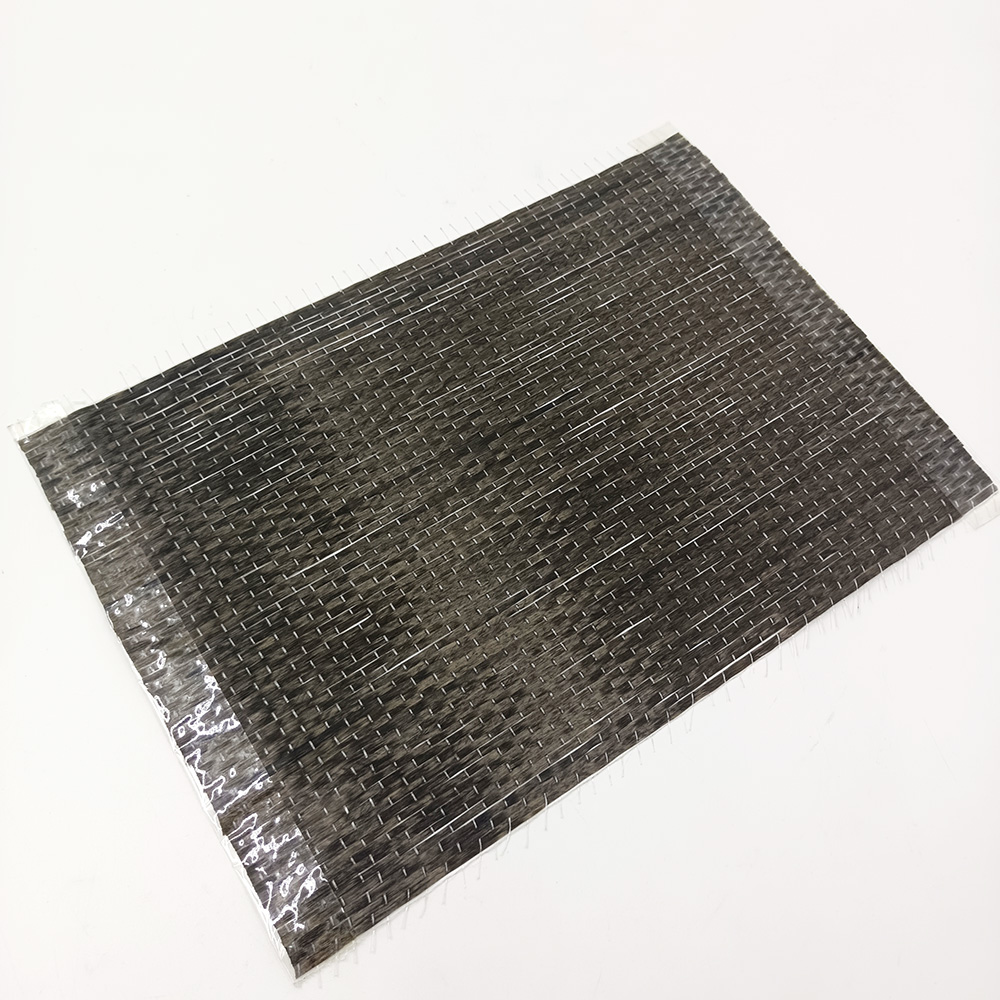

Unidirectional Basalt Fiber Cloth For Fireproof Materials
Product Feature:
- Superior unidirectional strength Longitudinal tensile strength can reach 1000-3000 MPa, far more than plain/twill fabrics.
- High modulus The modulus of elasticity is about 60-90 GPa, close to that of steel, which is suitable for rigidity enhancement.
- Light weight Density about 2.6-2.8 g/cm³, 70% lighter than steel, more cost advantage than carbon fiber.
- Anisotropy Mechanical properties are highly direction-dependent, and the strength in the weft direction is only 5-10% of that in the warp direction.
- Environmental resistance Acid and alkali resistant, UV resistant, suitable for long-term use in outdoor or corrosive environments.
Product Parameters:
|
Style
|
Reinforcement Yarn
|
Weave
|
Fiber Count (10mm)
|
Weight
|
Weight
|
Width
|
||
|
Warp
|
Weft
|
Warp
|
Warp
|
g/m2
|
mm
|
cm
|
||
|
BH-A-110
|
90Tex
|
90Tex
|
Plain
|
6
|
6
|
110
|
0.10
|
100
|
|
BH-A-145
|
90Tex
|
90Tex
|
Plain
|
8
|
8
|
145
|
0.13
|
100
|
|
BH-B-145
|
90Tex
|
90Tex
|
Twill
|
8
|
8
|
145
|
0.13
|
100
|
|
BH-A-200
|
110Tex
|
110Tex
|
Plain
|
9
|
9
|
200
|
0.18
|
100
|
|
BH-B-200
|
110Tex
|
110Tex
|
Twill
|
9
|
9
|
200
|
0.18
|
100
|
|
BH-A-200
|
132Tex
|
132Tex
|
Plain
|
8
|
7
|
200
|
0.18
|
100
|
|
BH-B-200
|
132Tex
|
132Tex
|
Twill
|
8
|
7
|
200
|
0.18
|
100
|
|
BH-A-300
|
300Tex
|
300Tex
|
Plain
|
5
|
5
|
300
|
0.25
|
100
|
|
BH-B-300
|
300Tex
|
300Tex
|
Twill
|
5
|
5
|
300
|
0.25
|
100
|
|
BH-A-360
|
300Tex
|
300Tex
|
Plain
|
6
|
6
|
360
|
0.30
|
100
|
|
BH-B-360
|
300Tex
|
300Tex
|
Twill
|
6
|
6
|
360
|
0.30
|
100
|
|
BH-B-420
|
300Tex
|
300Tex
|
Twill
|
7
|
7
|
420
|
0.35
|
100
|
|
BH-A-480
|
800Tex
|
800Tex
|
Plain
|
3
|
3
|
480
|
0.46
|
100
|
|
BH-A-600
|
800Tex
|
800Tex
|
Plain
|
4
|
3.5
|
600
|
0.48
|
100
|
|
BH-A-800
|
800Tex
|
800Tex
|
Plain
|
5
|
5
|
800
|
0.50
|
100
|
|
BH-A-145
|
90Tex
|
90Tex
|
Plain
|
8
|
8
|
145
|
0.13
|
100
|
|
BH-B-145
|
90Tex
|
90Tex
|
Twill
|
8
|
8
|
145
|
0.13
|
100
|
Product Applications:
- Building structure reinforcement:
Tension zone paste reinforcement of bridges, beams and columns (laid along the direction of force).
Replacement of carbon fiber cloth for low-cost seismic retrofitting.
- Composite components:
Wind turbine blade main beam (unidirectional cloth layer provides main load bearing capacity).
Lightweight components for ships and automobiles (composite with epoxy resin for directional reinforcement).
- Sports equipment:
Skis, bicycle frames (localized unidirectional reinforcement to reduce weight).
- Aerospace:
Rocket shells, drone wings (high specific strength, high temperature resistance properties).
