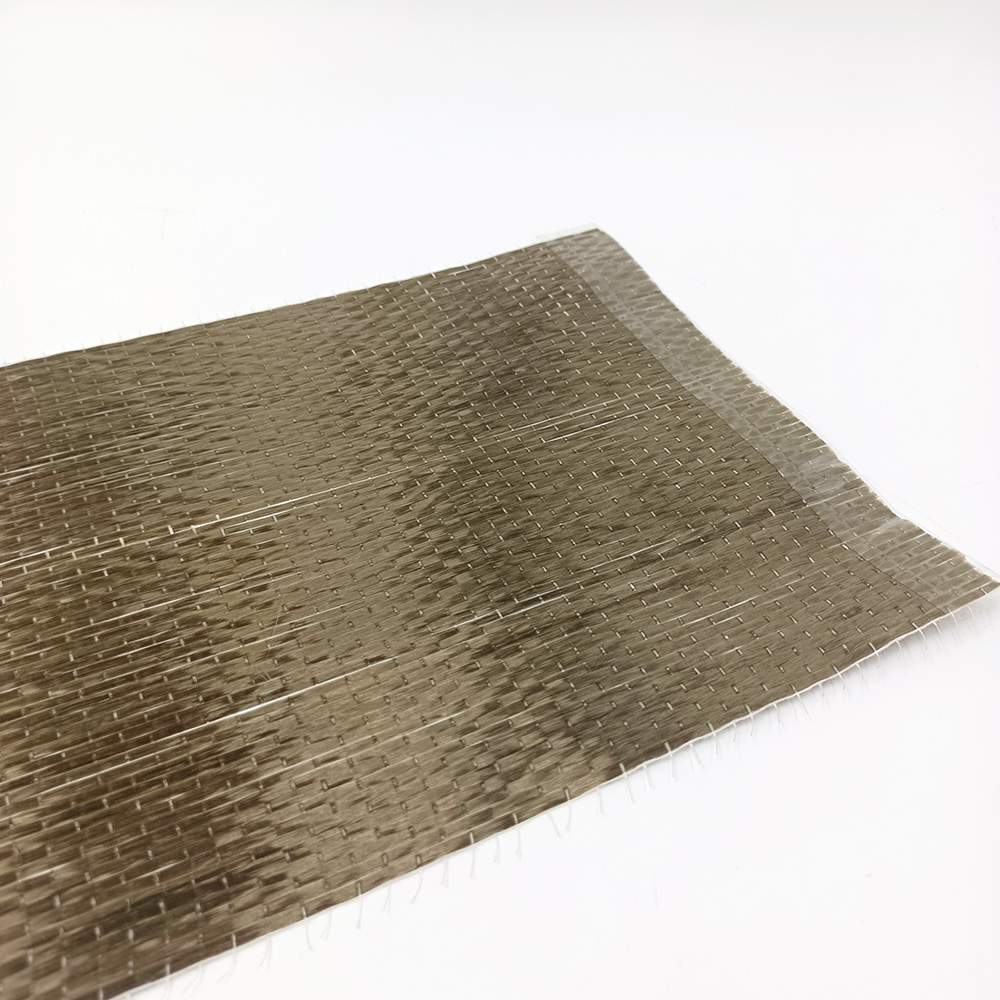

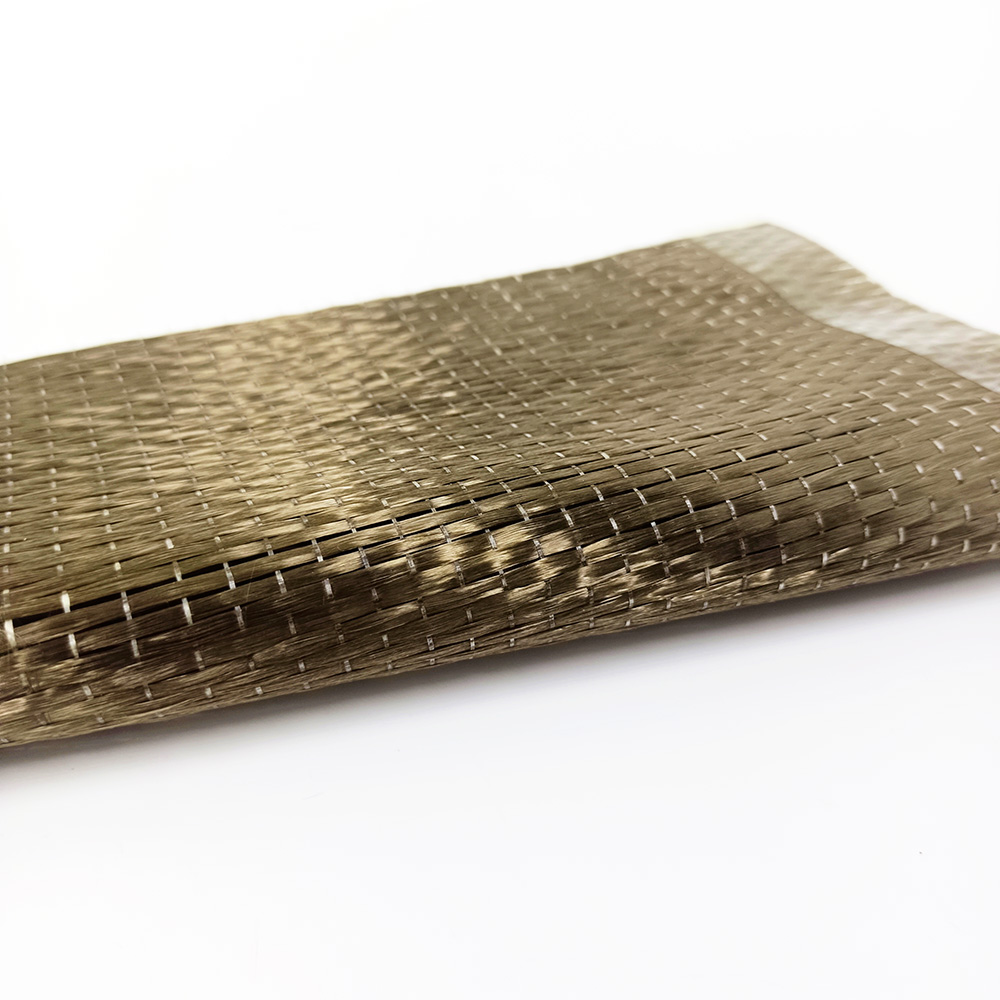

Corrosion-resistant Basalt Fiber Unidirectional Fabric

Basalt Fiber Unidirectional Fabric is a kind of unidirectional fabric woven using basalt fiber untwisted roving in as radial direction, which has good radial mechanical properties. The monofilament is uniformly coated with an infiltrating agent suitable for phenolic and epoxy resins, suitable for polyester, epoxy, phenolic, nylon, and other resin properties. And there are coupling agents added in the infiltrating agent which are compatible with many kinds of resins, giving full play to the reinforcing effect of basalt fiber unidirectional cloth.

Surface Treatment Smooth Surface
Processing Service Woven
Weave UD
Color Gold yellow
Thickness 0.18 - 0.30 mm

Product Detail

Product Feature:

1. High Strength: Basalt fiber cloth exhibits high tensile strength and excellent resistance to breakage, providing superior reinforcement to composite materials.
2. Heat Resistance: Basalt fibers have excellent heat resistance properties, allowing the cloth to withstand high temperatures without significant degradation.
3. Chemical Resistance: Basalt fibers are resistant to many chemicals, making the cloth suitable for applications in corrosive environments.
4. Lightweight: Basalt fiber cloth is lightweight compared to traditional reinforcement materials like steel, contributing to the weight reduction of composite structures.
5. Durability: The cloth is highly durable and has a long service life, making it suitable for demanding applications.

Product Parameters:

Style	Reinforcement Yarn		Weave	Fiber Count (10mm)		Weight	Weight	Width
Style	Warp	Weft	Weave	Warp	Warp	g/m2	mm	cm
BH-A-110	90Tex	90Tex	Plain	6	6	110	0.10	100
BH-A-145	90Tex	90Tex	Plain	8	8	145	0.13	100
BH-B-145	90Tex	90Tex	Twill	8	8	145	0.13	100
BH-A-200	110Tex	110Tex	Plain	9	9	200	0.18	100
BH-B-200	110Tex	110Tex	Twill	9	9	200	0.18	100
BH-A-200	132Tex	132Tex	Plain	8	7	200	0.18	100
BH-B-200	132Tex	132Tex	Twill	8	7	200	0.18	100
BH-A-300	300Tex	300Tex	Plain	5	5	300	0.25	100
BH-B-300	300Tex	300Tex	Twill	5	5	300	0.25	100
BH-A-360	300Tex	300Tex	Plain	6	6	360	0.30	100
BH-B-360	300Tex	300Tex	Twill	6	6	360	0.30	100
BH-B-420	300Tex	300Tex	Twill	7	7	420	0.35	100
BH-A-480	800Tex	800Tex	Plain	3	3	480	0.46	100
BH-A-600	800Tex	800Tex	Plain	4	3.5	600	0.48	100
BH-A-800	800Tex	800Tex	Plain	5	5	800	0.50	100
BH-A-145	90Tex	90Tex	Plain	8	8	145	0.13	100
BH-B-145	90Tex	90Tex	Twill	8	8	145	0.13	100

Product Applications:

1. Construction field
Waterproof protection: used in the roof, basement, internal and external walls of buildings to prevent water from soaking through and extend the service life of the buildings.
Enclosure: used as a protective material for retaining walls or other enclosure structures to prevent water or gas from entering or exiting in one direction.
Indoor partition walls and ceilings: Used to insulate sound and HVAC systems while preventing water vapor penetration and improving the comfort of the indoor environment.
2. Industrial
Pipeline and vessel protection: Used to protect pipelines, storage tanks and other equipment from flooding or gas leakage.
Waterproof Coating: Used as a material to coat equipment or piping to form a waterproof layer to prevent liquid or gas infiltration.
Aerospace: Used to manufacture the internal structure of spacecraft or other high-demand precision instruments to prevent liquid or gas leakage.
3. Transportation
Guardrail and barricade: Used to make water damage-resistant guardrail to prevent water from washing away the barricade or guardrail.
Tunnels: Used as tunnel protection materials to prevent damage to tunnel structures caused by water vapor or humid environments.
4. Military
Stealth material: used as stealth coating in military equipment to prevent radar detection.
Shield: Used to make bulletproof glass or other protective structures to prevent bullets or fragments from penetrating.
5. Sports Facilities
Swimming pool enclosure : Used to make enclosure materials for swimming pools to prevent water leakage.
Ballpark : To prevent water vapor penetration and extend the service life of the field.
6. Other fields
Breathing barrier: Used as a breathing barrier in some medical equipment to prevent harmful gases from entering.
High-performance buildings: Used as a partition material, combined with one-way leakage control function, to enhance the energy-saving and safety performance of buildings.
