High Strength Basalt Fiber Geogrid Mesh For Road Reinforcement Construction
Product Description

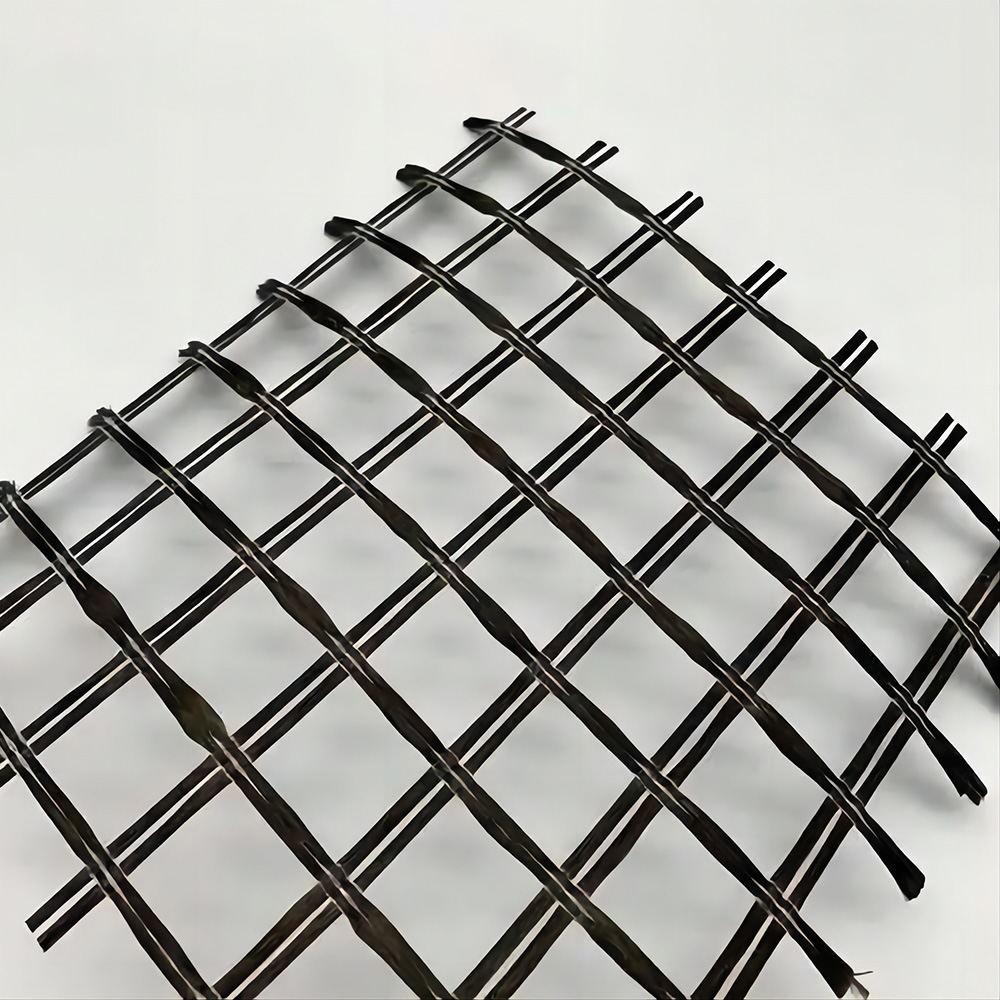

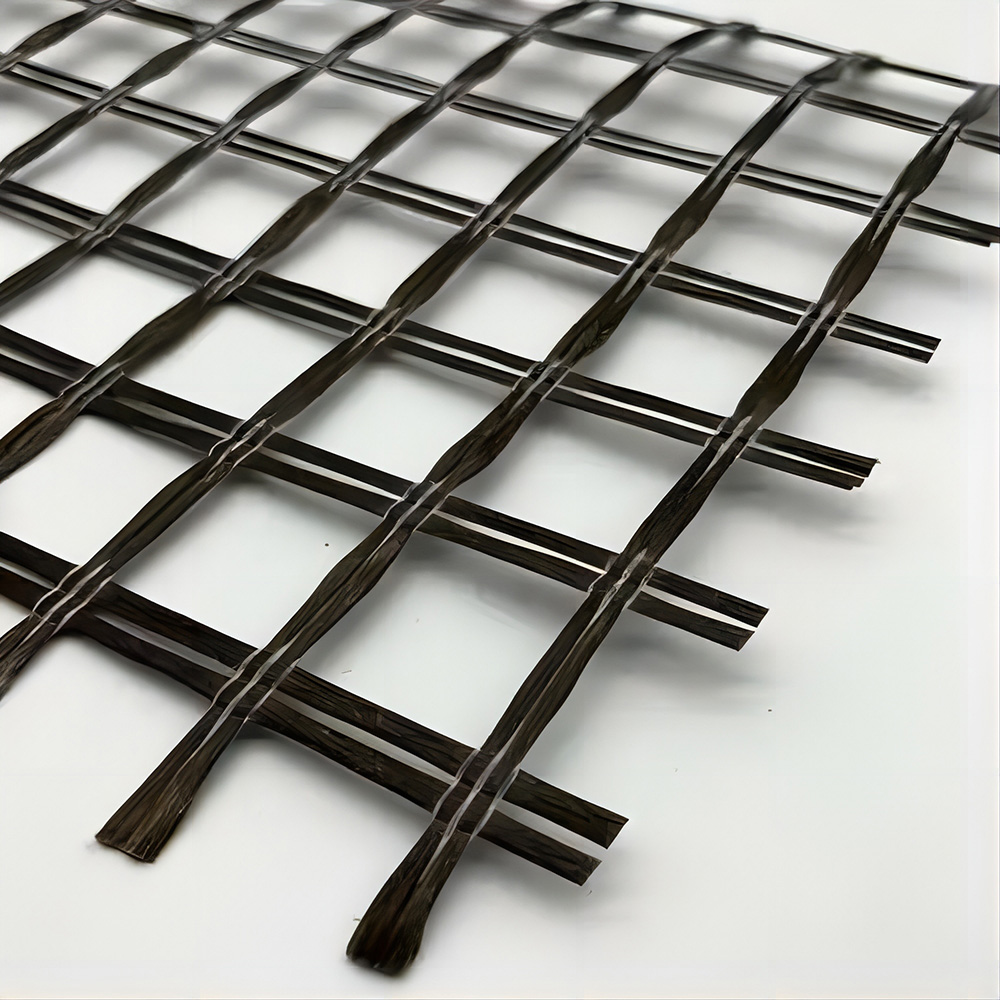

Basalt Fiber Geogrid Mesh is a kind of reinforcement product which uses the anti acid and alkali basalt continuous filament (BCF) to produce gridding base material with advanced knitting process, sized with saline and coated with Bitumen or Polymer for pavement and basement.
Product Specification
|
Items |
Mesh (center distance) (mm) |
Breaking Strength (kN/m)≥ |
Elongation at Break (%)≤ |
|||
|
Warp |
Weft |
Warp |
Weft |
Warp |
Weft |
|
|
BHG1x1(40x40) |
1±0.15 |
1±0.15 |
40 |
40 |
4.0 |
4.0 |
|
BHG1x1(60x60) |
1±0.15 |
1±0.15 |
60 |
60 |
4.0 |
4.0 |
|
BHG1x1(70x70) |
1±0.15 |
1±0.15 |
70 |
70 |
4.0 |
4.0 |
|
BHG1x1(90x90) |
1±0.15 |
1±0.15 |
90 |
90 |
4.0 |
4.0 |
|
BHG1x1(110x110) |
1±0.15 |
1±0.15 |
110 |
110 |
4.0 |
4.0 |
|
BHG1x1(130x130) |
1±0.15 |
1±0.15 |
130 |
130 |
4.0 |
4.0 |
|
BHG1x1(160x160) |
1±0.15 |
1±0.15 |
160 |
160 |
4.0 |
4.0 |
|
BHG2x2(60x60) |
2±0.15 |
2±0.15 |
60 |
60 |
4.0 |
4.0 |
|
BHG2x2(90x90) |
2±0.15 |
2±0.15 |
90 |
90 |
4.0 |
4.0 |
|
BHG2x2(110x110) |
2±0.15 |
2±0.15 |
110 |
110 |
4.0 |
4.0 |
|
Other specifications can be customized |
||||||
Product Features
- High tensile strength and low elongation
- No long-term creep and good thermal stability
- Good physic and chemical stability, strong resistance to biologic erosion and climate changes
- Good affinity with asphalt and cement concrete.

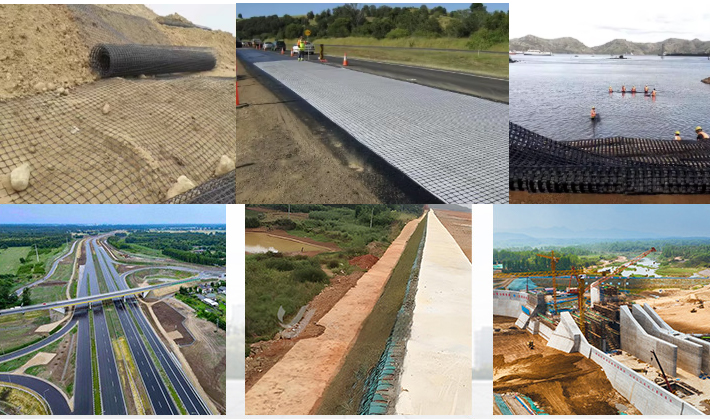

Applications
Civil engineering
Reinforcement of roadbeds:
Function: Disperse the load and reduce the uneven settlement;
Case: Substitute steel-plastic grating in soft foundation treatment of high-speed railroad, reducing maintenance cost by 30%.
Slope protection:
Program: grating + vegetated concrete (2-3 times higher slip resistance).
Traffic engineering
Asphalt pavement enhancement:
Laying between asphalt layers, delaying reflection cracks (fatigue life extended by 50%);
Construction temperature: 160-180℃ (basalt fiber has significant advantages in high temperature resistance).
Water conservancy engineering
Seepage control structure of embankment dam:
Composite use with geomembrane to resist hydraulic scour;
Requirement of tensile strength: ≥100 kN/m (bi-directional grating).
Mining ecological restoration
Tailings dam reinforcement:
Acid corrosion resistance (pH 3-4 environment), service life > 50 years.
