Basalt Fiber Geogrid Mesh
Product Description
Basalt Mesh Fabric is a pavement and basement reinforcement product utilizing acid and alkali resistant Basalt Continuous Filaments (BCF) with an advanced weaving process to produce a mesh fabric substrate, which is brine set and coated with asphalt or polymers for pavement and basement reinforcement.
Basalt mesh fabrics are designed to reinforce road and highway pavements to extend pavement life by reducing reflective cracking caused by traffic loading, age hardening and temperature cycling.
The service life of a pavement can be greatly extended between repairs. Basalt reinforcing mesh can reduce the thickness of asphalt concrete pavements by up to 20%.
Product Specification
|
Mesh Size |
Fabric Weave |
Areal Weight(g/m2) |
Maximum Width(cm) |
Tensile Breaking Strength N/5cm |
|
2.5*2.5 |
Twist weave |
100±5 |
220 |
≥800 |
|
5*5 |
160±8 |
≥1500 |
||
|
10*10 |
250±12 |
≥2000 |
Product Features
-
High Strength: High tensile strength, superior to many traditional materials.
-
Corrosion Resistance: Resistant to acids, alkalis, and chemical corrosion, suitable for harsh environments.
-
High Temperature Resistance: Maintains performance at high temperatures, ideal for high-temperature environments.
-
Lightweight: Low weight, facilitating easy construction and transportation.
-
Eco-Friendly: Made from natural basalt, recyclable and environmentally friendly.

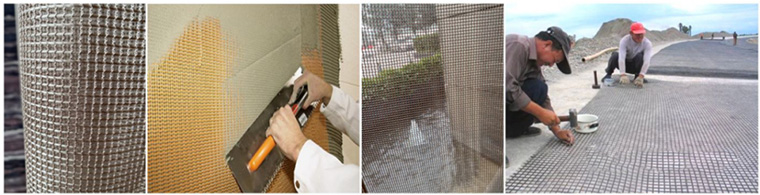

Applications
-
Building Reinforcement: Used for reinforcing walls, floors, beams, and columns to enhance seismic performance.
-
Road Engineering: Applied in road surface reinforcement to reduce cracks and extend service life.
-
Bridge Engineering: Used for bridge reinforcement to improve load-bearing capacity and durability.
-
Tunnel Engineering: Employed in tunnel lining to enhance structural stability.
-
Hydraulic Engineering: Utilized in dam and channel reinforcement to improve erosion resistance.
