Basalt fiber cloth special for epoxy resin laminates
Product: Basalt fiber fabric
Loading time: 2025/11/26
Loading quantity: 1 Roll
Ship to: France
Specification:
Material: Basalt Fiber
Areal weight: 300g/m2
Width: 1000mm, length: 100m

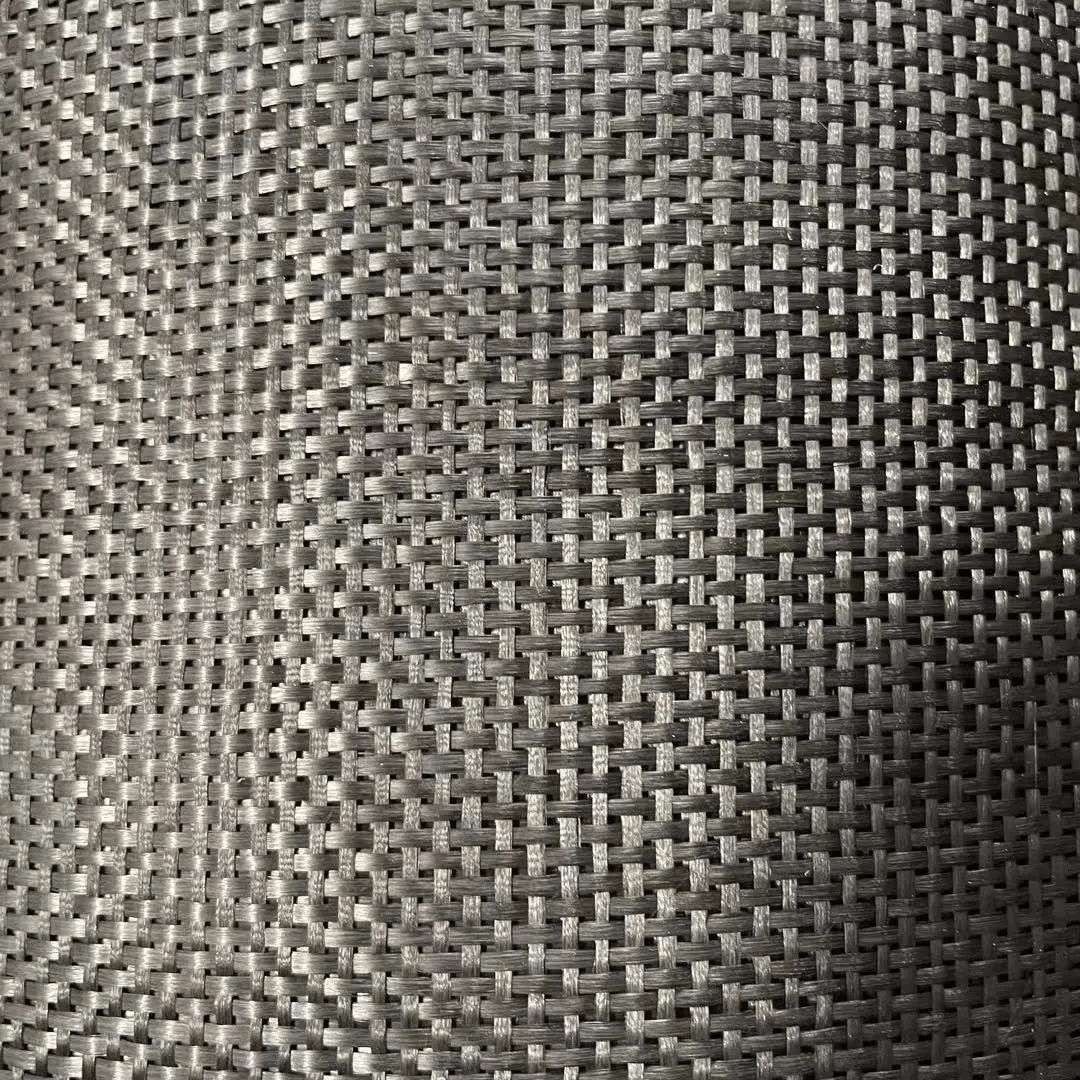

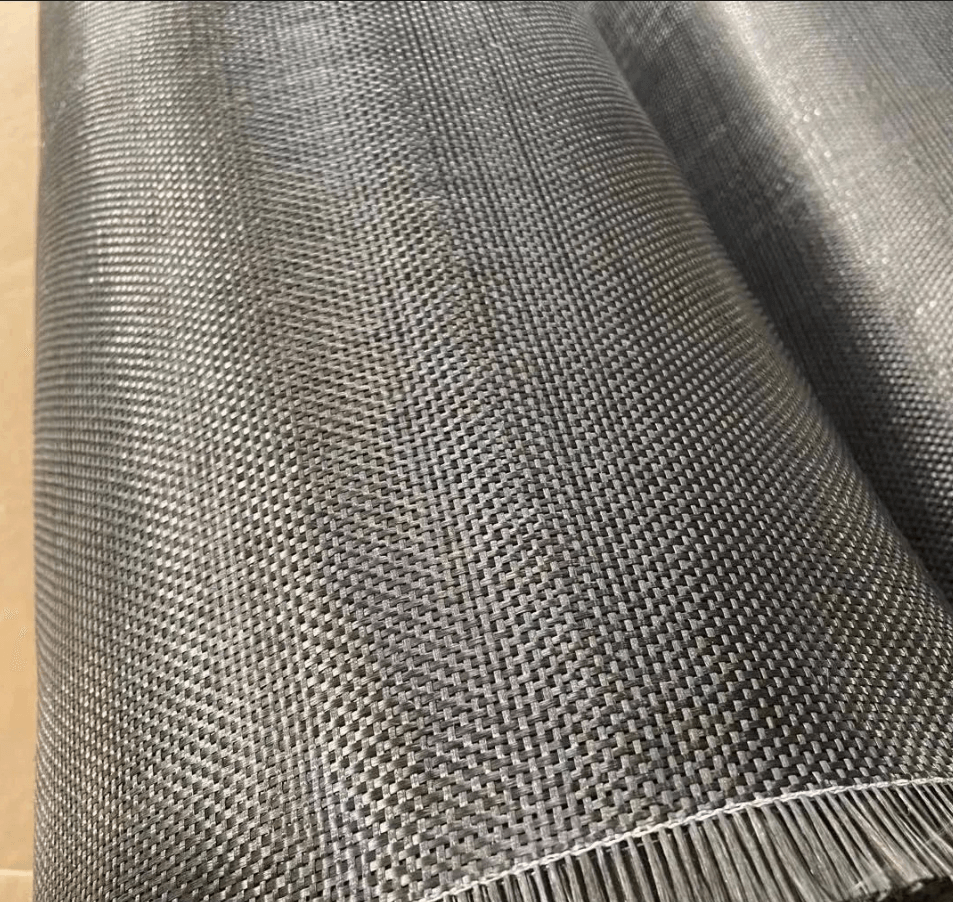

High-quality basalt fiber cloth specially designed for producing high-performance epoxy resin laminates board. It uses continuous basalt fibers through special weaving and surface treatment processes to achieve the best wettability and adhesion with the epoxy resin system, the final composite materials with outstanding mechanical properties, heat resistance and corrosion resistance.
Why choose our basalt fiber cloth for epoxy laminates?
- Outstanding interlaminar shear strength
After being treated with an optimized surface coupling agent, it forms a strong Chemical bond with epoxy resin.
Effectively transfer and disperse stress can prevent delamination of laminates under force and ensure structural integrity.
- Excellent resin wettability
The unique weaving structure and high surface activity enable epoxy resin to quickly and evenly penetrate and coat each fiber.
Reduce dry spots and bubbles inside the laminate to obtain products with higher density and lower porosity.
- Its comprehensive performance surpasses that of traditional materials
- High specific strength and modulus: It offers a reinforcing effect comparable to that of carbon fiber, but at a more competitive cost.
- Good fatigue resistance: The fibers are firmly bonded to the epoxy resin matrix, and the performance degradation is slow under dynamic loads.
- Low coefficient of thermal expansion: Ensures the dimensional stability of the laminate under temperature changes and makes it less prone to deformation.
- Excellent terminal performance
- High-temperature resistance: With a wide operating temperature range (-260℃ to +700℃), the laminate is suitable for high-temperature environments.
- Chemical resistance: It has inherent resistance to acids, alkalis, salts and organic solvents, extending its service life in harsh environments.
- Electrical insulation: It has excellent dielectric properties and is suitable for electrical equipment components.
Typical application scenarios
- Aerospace: Lightweight and high-strength components such as unmanned aerial vehicle shells, equipment bulkhead panels, and interior panels.
- Transportation: Lightweight leaf springs for automobiles, truck body panels, interior panels for rail transit.
- Industrial equipment: Inner linings of chemical storage tanks, corrosion-resistant pipes, equipment protective covers.
- Sports equipment: High-performance fishing rods, paddles, bicycle racks, safety helmets.
- Electronics and Electrical: PCB substrate, insulating partition board.
Recommended parameters
- Resin system: Applicable to all types of epoxy resins (suggested viscosity: 300-800cps).
- Fiber weight: It can be selected according to the thickness and strength requirements of the laminate (e.g., 200g/m², 300g/m², 600g/m²).
- Weaving methods: Plain weave (smooth surface), twill weave (good formability), unidirectional weave (directional high strength).
- Curing conditions: Suitable for vacuum bag pressing, RTM, hand lay-up and other forming processes.
Our advantages
We are well aware of the strict requirements that epoxy resin laminates impose on fiber-reinforced materials. This product, through strict quality control, ensures that each roll of fabric has consistent weaving density, uniform tension and excellent batch stability. It is a reliable choice for you to manufacture top-performance composite material products.
Contact us immediately to get free samples and technical materials and experience the outstanding changes it brings to your high-performance laminates!
